Your transmission is silently battling 250°F temperatures right now as you drive. Inside that complex gearbox, automatic transmission fluid (ATF) performs a triple duty: hydraulic fluid for gear changes, lubricant for spinning components, and critical coolant absorbing intense heat. But when temperatures exceed 200°F, ATF begins breaking down within minutes—transforming from protective fluid into destructive sludge. This is where the automatic transmission oil cooler becomes your transmission’s lifeline. Without this unsung hero, your vehicle faces catastrophic failure within 300 miles of overheating. Understanding how does an automatic transmission oil cooler work isn’t just technical trivia—it’s the difference between a transmission lasting 100,000 miles or failing before your next oil change.
Most drivers only discover their cooler’s importance when they smell burning fluid or experience transmission slippage. The reality? Over 90% of transmission failures trace back to overheating fluid, not mechanical defects. Factory coolers often struggle under modern driving conditions—stop-and-go traffic, heavy towing, or hot climates push systems beyond design limits. This guide reveals exactly how your cooler functions, how to spot failure signs before damage occurs, and why proper cooling can double your transmission’s lifespan. You’ll learn actionable maintenance steps that take less than 10 minutes but prevent $3,000 repairs.
The Heat Exchange Process Inside Your Transmission Cooler
Your transmission cooler operates on physics principles you experience daily—like how sweat cools your skin. When hot ATF (typically 220-250°F) exits your transmission, it flows through steel lines into the cooler’s internal passages. This compact radiator, usually mounted ahead of your engine radiator, contains a maze of thin metal tubes bonded to aluminum fins. As your vehicle moves, ambient air rushes through these fins, creating a temperature gradient that pulls heat from the fluid.
Why Airflow Direction Determines Cooling Efficiency
Cooler performance depends entirely on unobstructed airflow. Front-mounted coolers leverage your vehicle’s forward motion, with optimal efficiency when fins face directly into the airstream. If your cooler sits behind the AC condenser (common in modern trucks), airflow drops 30-40%—explaining why transmissions overheat faster in traffic. Never mount coolers horizontally; vertical orientation ensures air flows across maximum surface area. You’ll recognize poor airflow when fluid temperatures climb 50°F higher during city driving versus highway cruising.
The Critical Temperature Drop in 3 Seconds
Within three seconds inside the cooler, ATF must shed 50-70°F. High-performance coolers achieve this through “multi-pass” designs where fluid zigzags through multiple chambers. Watch for visible turbulence in the fluid sight glass (if equipped)—smooth flow indicates insufficient cooling. Properly functioning units return fluid to your transmission at 175-190°F, maintaining the ideal viscosity for hydraulic pressure and lubrication. Any return temperature above 210°F signals imminent fluid breakdown.
Why Transmission Fluid Breaks Down Above 200°F (And What Happens Next)
ATF isn’t just oil—it’s a precisely engineered fluid with temperature-sensitive additives. Above 200°F, oxidation begins altering its chemical structure. This isn’t gradual degradation; fluid loses 50% of its protective properties within the first 30 minutes of overheating. The consequences escalate rapidly through three destructive phases.
The 30-Minute Timeline to Transmission Failure
Phase 1 (0-10 minutes): Fluid darkens as anti-foam agents evaporate, causing aeration. You’ll notice delayed shifts as air bubbles compress in hydraulic circuits.
Phase 2 (10-20 minutes): Varnish forms as oxidation byproducts coat clutch plates. Shifts become jerky—like slamming gears in a manual transmission.
Phase 3 (20-30 minutes): Fluid thickens into sludge, clogging the valve body’s 0.010-inch passages. This causes “limp mode” where only 2nd or 3rd gear engages.
How Sludge Clogs Your Transmission’s “Brain”
The valve body is your transmission’s nervous system—a network of springs, valves, and solenoids controlling fluid pressure. When sludge from overheated ATF enters these passages:
– Pressure regulator valves stick open/closed
– Shift solenoids receive inconsistent signals
– Accumulators fail to cushion gear changes
Result? “Hunting” between gears, where your transmission rapidly shifts 3rd-4th-3rd while maintaining speed. This isn’t a computer glitch—it’s physical blockage from degraded fluid.

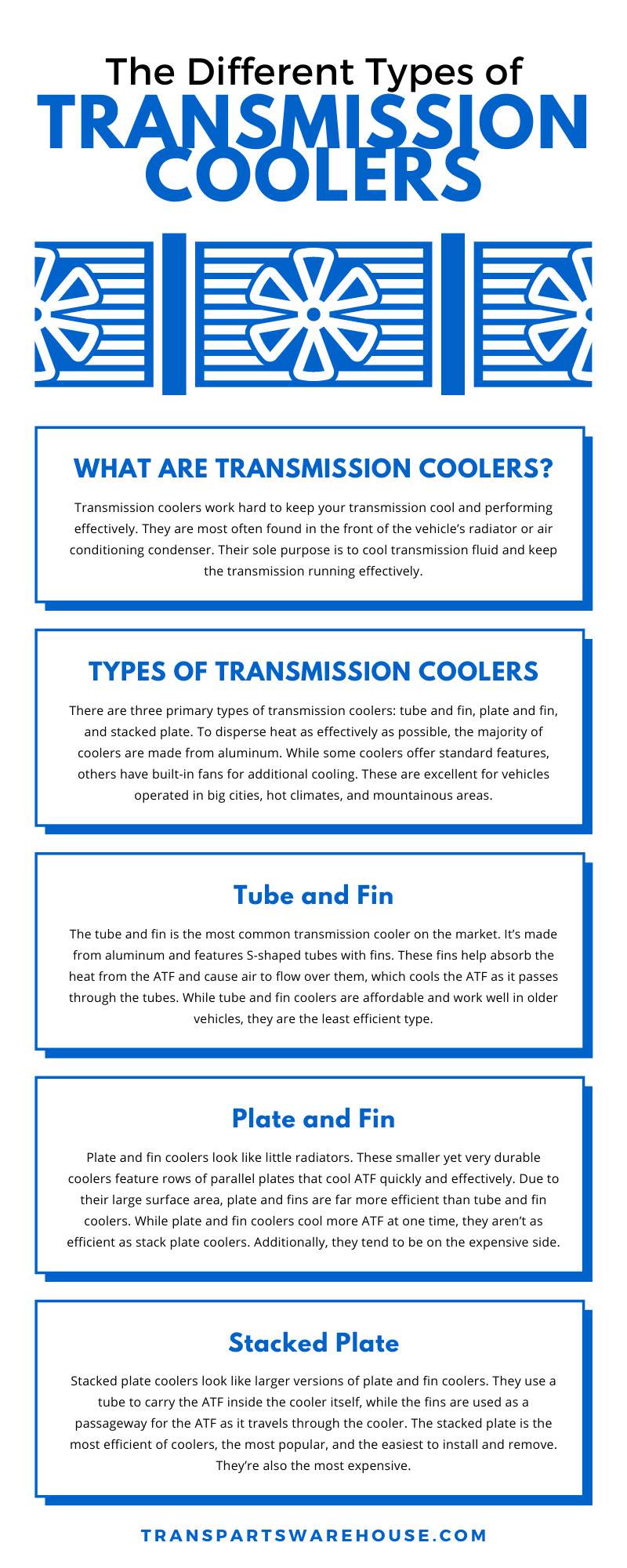

Integrated Radiator Coolers vs. Auxiliary Units: Which One Do You Have?
Your vehicle likely uses one of two cooling designs, each with critical limitations. Identifying yours takes 60 seconds and determines your vulnerability to overheating.
Spotting Your Factory Cooler Type in 2 Minutes
Integrated radiator cooler: Found in 80% of modern sedans. Locate your engine radiator’s lower plastic tank—visible ATF lines enter/exit its side. This design shares coolant with the engine, making it vulnerable when the radiator overheats. Auxiliary cooler: Common in trucks/SUVs. Look for a separate rectangular unit (6″x10″ typically) mounted ahead of the main radiator with dedicated steel lines. Often has “trans cooler” stamped on its housing.
Why Integrated Coolers Fail Under Heavy Towing Loads
When towing, your engine radiator already runs at 220°F+ coolant temps. Since integrated coolers rely on this pre-heated coolant, they can’t drop ATF below 200°F—right in the danger zone. Worse, a single leak causes cross-contamination: coolant mixes with ATF, creating mayonnaise-like sludge that destroys both systems. This explains why transmissions fail faster in vehicles without auxiliary coolers during towing.
How Auxiliary Coolers Create a Two-Stage Cooling System
Dedicated auxiliary coolers bypass engine coolant entirely, dumping heat directly to ambient air. When plumbed in series (ATF flows through radiator cooler first, then auxiliary unit), they achieve 40% greater cooling capacity. For example:
– Stage 1 (Radiator): 250°F → 210°F
– Stage 2 (Auxiliary): 210°F → 180°F
This dual-system approach keeps fluid 30°F cooler during mountain descents—critical for preventing torque converter lockup failure.
4 Warning Signs Your Transmission Cooler Isn’t Doing Its Job
Don’t wait for complete failure. These early indicators give you time to intervene before internal damage occurs.
Dark, Burnt-Smelling Fluid: Your First Red Flag
Check fluid color using the dipstick:
– Healthy: Translucent red (like cherry Kool-Aid)
– Warning: Dark maroon with faint oil smell
– Critical: Brown/black with burnt toast odor
The smell test is crucial—oxidized ATF emits a distinct acrid scent. If fluid sticks to your finger like syrup instead of flowing freely, sludge formation has begun.
Transmission Slipping During Highway Driving
Overheating causes fluid to lose viscosity, reducing hydraulic pressure. You’ll notice:
– Engine RPMs suddenly jumping 500+ without acceleration
– “Coasting” sensation when climbing hills
– Delayed engagement after stopping (takes 2+ seconds to shift into drive)
This isn’t normal wear—it means clutch packs are slipping due to inadequate fluid pressure from thin, overheated ATF.
How to Inspect Cooler Lines for Leaks in Under 10 Minutes
Prevent fluid loss with this quick under-hood check. You’ll need only a flashlight and rag.
Step 1: Locating Critical Connection Points
Find where steel lines meet:
– Transmission case outlet (driver’s side typically)
– Radiator or auxiliary cooler inlets
– Any junction blocks (common on Ford trucks)
Focus on 90-degree bends and crimp fittings—these fail first under heat cycling.
Step 2: Checking for Invisible Leaks
Wipe connections dry, then spray soapy water on joints. Bubbles form within 60 seconds if leaking. For hidden leaks:
– Place cardboard under transmission overnight
– Inspect for fresh red spots (ATF doesn’t evaporate like engine oil)
– Check for fluid trails along frame rails
Step 3: Testing Line Integrity Without Special Tools
Gently squeeze rubber sections of cooler lines (if present). Cracks feel like “alligator skin” and may not leak until hot. Replace lines showing ANY brittleness—they fail catastrophically when fluid reaches 200°F.
Why Cleaning Cooler Fins Prevents $3,000 Transmission Repairs
Clogged fins reduce cooling efficiency by 70%—equivalent to driving with no cooler. This silent killer builds up faster than you think.
The Debris Trap: Bugs, Leaves, and Road Grime
After 5,000 highway miles, coolers accumulate:
– Bug carcasses forming an insulating layer
– Dust creating concrete-like mud
– Plastic bags blocking airflow channels
You’ll see this as a dark “shadow” pattern on the cooler face—air can’t pass through these sections.
Safe Cleaning Methods That Won’t Bend Fins
NEVER use compressed air—it bends delicate fins. Instead:
1. Spray with degreaser (Simple Green works)
2. Wait 5 minutes for grime to soften
3. Use a soft-bristle brush at 45-degree angle
4. Rinse with LOW-pressure water (max 500 PSI)
Test effectiveness by holding a dollar bill against the cooler—if it sticks when engine runs, airflow is sufficient.
Monthly Maintenance That Takes 5 Minutes
Make this part of your fuel stop routine:
– Visually inspect cooler face for obstructions
– Check fluid level/color on dipstick
– Listen for transmission “barking” during shifts (indicates slippage)
This habit catches 80% of cooling issues before internal damage occurs.
Your transmission oil cooler isn’t just a component—it’s a thermal insurance policy. By maintaining fluid temperatures below 200°F, you prevent the chemical chain reaction that turns protective ATF into destructive sludge. Remember: every 20°F above 200°F halves your fluid’s lifespan. For tow vehicles, add an auxiliary cooler rated for 125% of your trailer weight. During routine maintenance, spend 5 minutes inspecting cooler lines and fins—this simple habit prevents catastrophic failures. If you notice dark fluid or slipping gears, flush the system immediately before sludge causes permanent valve body damage. A properly functioning cooler keeps your transmission running like new at 200,000 miles, while neglect guarantees expensive repairs. Your vehicle’s longevity depends on this unsung hero working exactly as designed—now you know how to keep it performing.
